Rosin Technologies - Pneumatic Rosin Press

The Rosin Technologies Pneumatic Rosin Press is the first of it’s kind! Ahead of its time, this press was designed and engineered to OSHA Safety Standards inside the United States. With adjustable pressure and accurate heat platens, you are sure to get the perfect squish with every press. This machine is built to last. The press is now available to purchase.

Pneumatic Press Features:

• Dual Heating Platens
• Digital Temperature Control
• Temperature Range: Room Temperature: 300º F or 149º C
• Adjustable Pressure
• Adjustable Downstroke Speed
• Up to 2,400 lbs of Pressure
• Open Workspace for Added Convenience
• OSHA Certified Two Hand Tie Down Safety Controls
• Two Removable Gray U-shaped Cooling Plates Included
• Includes One Pack of 10 Thin & Skinny 90 micron Tea Bag Filters
• Quick Start Instructions

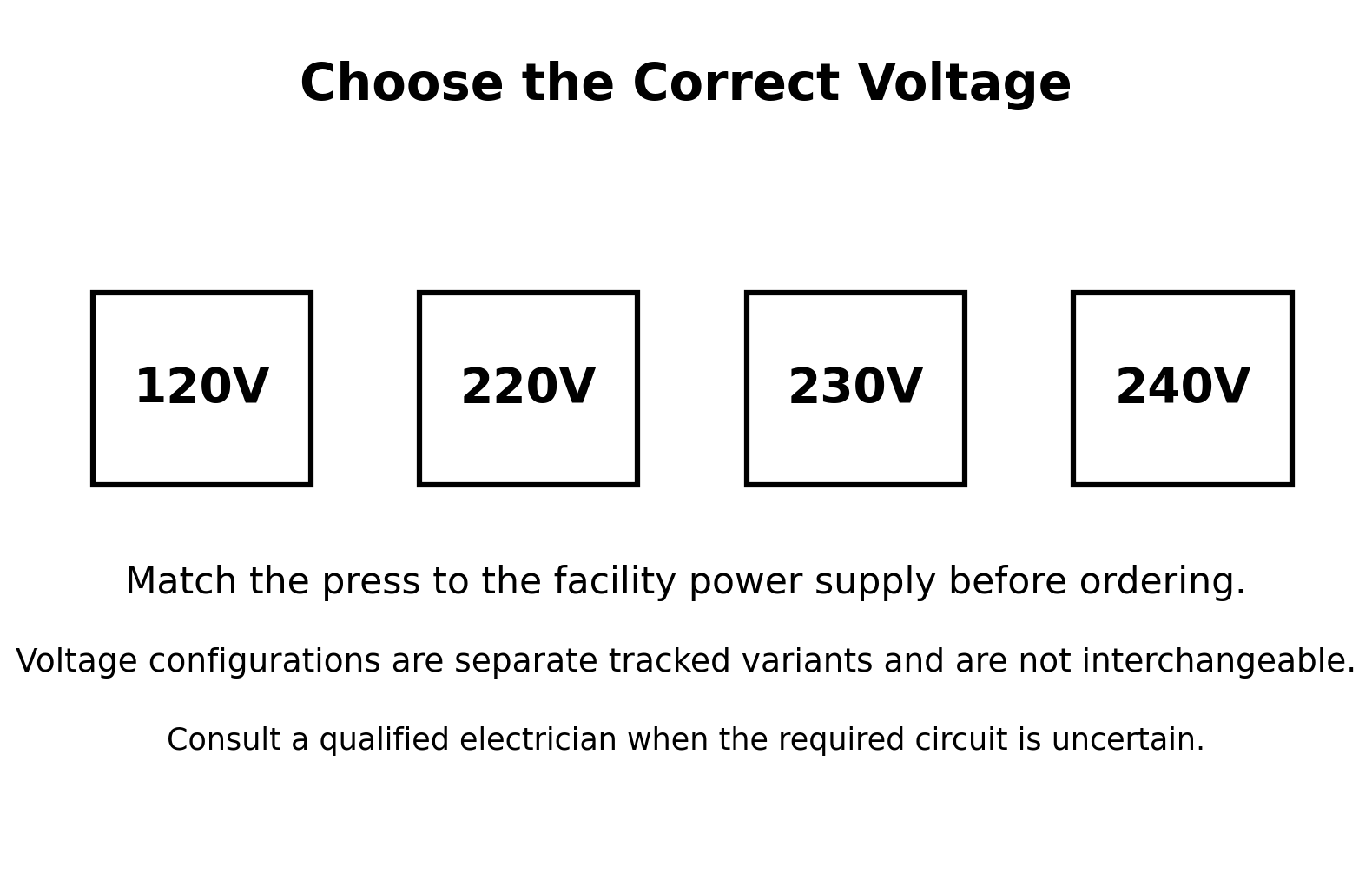

• Voltage: 120, 220, 230 & 240 Volt Options Available
• Approx. Shipping Weight: 145 lbs
• Designed, Engineered and Manufactured in the USA

Warranty Information

• 5 Year Warranty on Base and Column
• 1 Year Warranty on Piston
• 1 Year Warranty on Regulator and Filtering System
• 1 Year Warranty on Safety Buttons

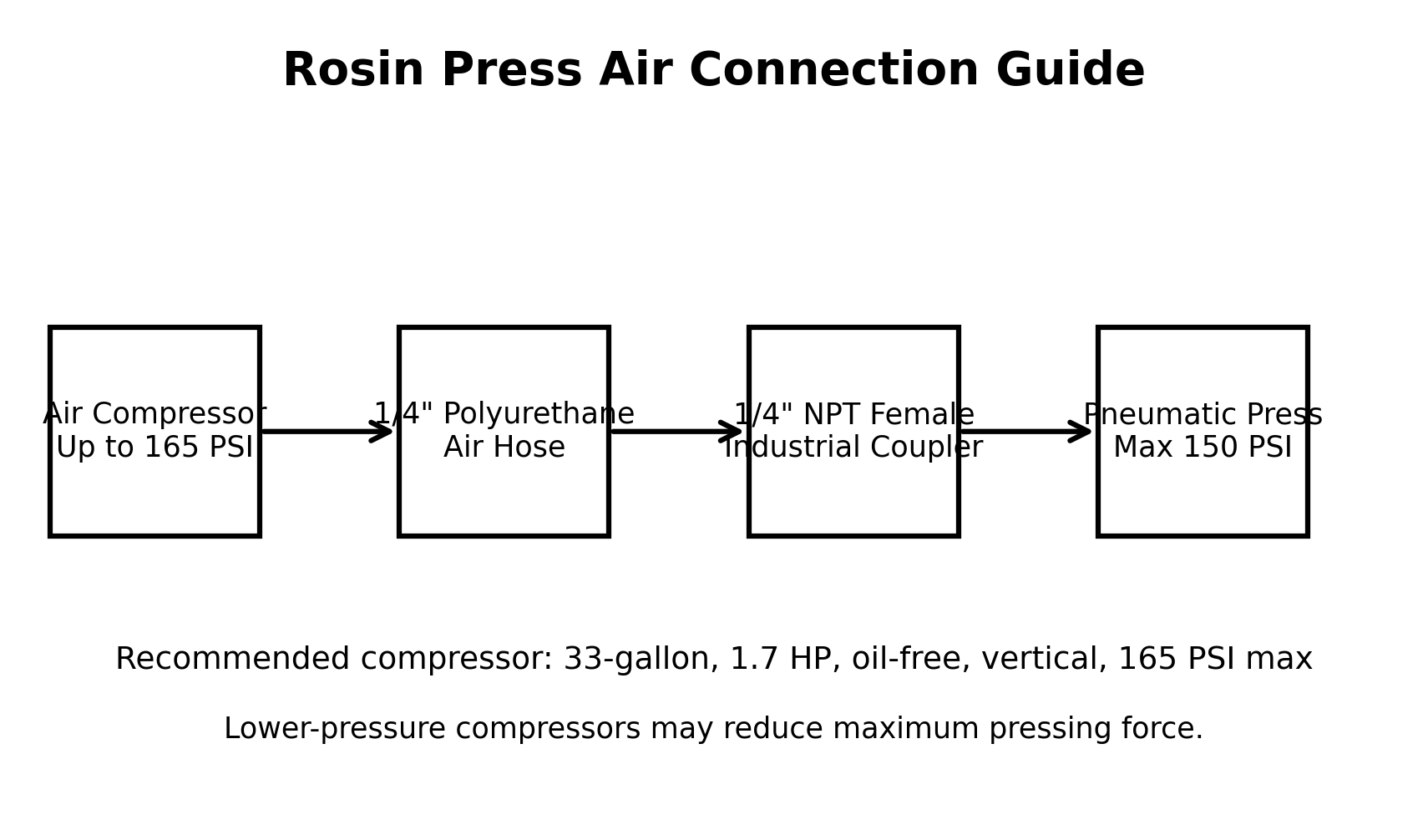

Recommended Parts Needed

• Surge Protected Outlet
• 33 Gallon 1.7 HP Oil-Free Vertical Air Compressor 165 Max PSI
• ¼ in. x 25ft. Polyurethane Air Hose
• ¼ in. X ¼ in. NPT Female Industrial Steel Coupler
• ¼ in. X ¼ in. NPT Female Industrial Plug
• 25 lb or Thicker Silicone Parchment Paper Sheets
• Tea Bag Filters

Temperature Controller User Instructions:

• All Rosin Technologies Temperature Controllers are Preset to 220ºF
• Press —  O  Toggle Switch for Power
• Press ⬅/AT Button to Activate Temperature Control
• Press ⬆  ⬇ Buttons to Raise & Lower Desired Temperature*
• Press ⬅/AT Button to Navigate Through Each Degree
• Press SET   Button to Lock the Desired Temperature In Place

Operator Instructions 1. Turn on Temperature controller and set the desired temperature* (give time to settle on temp) 2. Set desired pressure 3. Place filled tea bag filter in between pre-folded parchment paper 4. Place folded parchment paper between heat sources and press both triggers simultaneously 5. Hold triggers for the desired amount of time 6. Immediately pull parchment away from heat source and put between cooling plates 7. Repeat process on the same tea bag filter until satisfied



*Recommended Heat Settings

Flowers: 180 - 230 degrees

Concentrates: 150 - 200 degrees
